Software

New updated from 2023

 SCRY Scandinavian Baltic RTTY CONTEST - RTTYops WW RTTY DX CONTEST -



The logrobot will fix all total scoring !

 Just submit your log as SCC if that you can do !

RTTY SOFTWARE Version:
MMTTY RTTY software   Download here
2Tone RTTY software   Download here
Gritty   Download here

Contest Software Version Logname:
DXLog.net 2.5.20  RTTY-OPS-WW-DX
N1MM Logger+ Use UDC file or SCRY in N1MM SCRY or RY_OPS UDC
RumLog for MAC/APPLE Rumlog download RTTY-OPS-WW
Writelog V12.73

 Down and Installed with  help of Writelog 12 Legacy Installer helper

Download this files

 * DC3HB Writelog module download

SCC RTTY Championship
Win-test  4.37.0 SCCRTTY
QAR TEST   SCCRTTY
mixW Mixw Guide to Contest  Download RTTYopsWW dll file
UCX logger UcxLog Version 8.29 Beta 6 Download http://www.ucxlog.org



The logrobot will fix all total scoring !

 Just submit your log as SCC if that you can do !

RTTY SOFTWARE Version:
MMTTY RTTY software   Download here
MMTTY RTTY Software  RTTY engine MMTTY/XMMT for Writelog download here
2Tone RTTY software   Download here
Gritty   Download here


Contest Software Version Logname:
DXLog.net 2.5.20  SCRY-O-DX
N1MM Logger+ Use internal SCRY inbuilt in N1MM logger SCRY
RumLog for MAC/APPLE Rumlog download RTTY-OPS-WW
Writelog V12.73

 Down and Installed with  help of Writelog 12 Legacy Installer helper

Download this files

 * DC3HB Writelog module download

SCC RTTY Championship

cant calculate 160m or 40m pts

and no baltic score

Win-test  4.37.0 SCCRTTY
QAR TEST   SCCRTTY
mixW Mixw Guide to Contest  Download RTTYopsWW dll file
UCX logger UcxLog Version 8.29 Beta 6 Download http://www.ucxlog.org



SETUP DX LOG

How to setup DXLOG in RTTY ?

1. Youtube video Guide here

2. DXLOG SETUP http://dxlog.net/docs/index.php/Menu_Windows

Change period

For contests that are split into several time-defined periods, this option is used to manually switch between periods.
Periods can be changed on active QSO and also on previously logged QSO.

Note: this option will only be shown if the current contest has configured periods.

Period before

Shortcut: [Ctrl][F10]

This will change the period on the active or edited QSO to the previous period.

  • If the contest is split into four time defined periods and the period set in the QSO is #3, pressing [Ctrl][F10] will change this QSO to period #2.
  • If time period is #1, this will change the time period number to last one. eg if 4 periods pressing [Ctrl][F10] will change this QSO to period #4.

Period after

Shortcut: [Ctrl][F11]

This will change the period on the active or edited QSO to the next period.

  • If the contest is split into four time defined periods and the period set in the QSO is #3, pressing [Ctrl][F11] will change this QSO to period #4.
  • If the time period is #4, this will change the time period number to first one. eg if 4 periods pressing [Ctrl][F11] will change this QSO to period #1.

Digital Decoder Windows

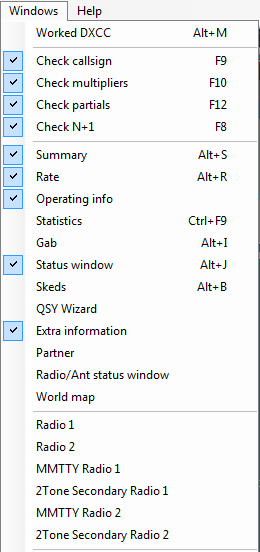

There are four digital decoder windows (two for each radio), each enabled by selecting separately from the Windows menu.
The four selections are located just below the Radio1/Radio2 band map menu picks, and the exact wording is dependent on the RTTY Configuration.

IMPORTANT: Radio 2 windows will only be active if SO2VSO2R or Advanced SO2R are enabled in Operating|Technique.

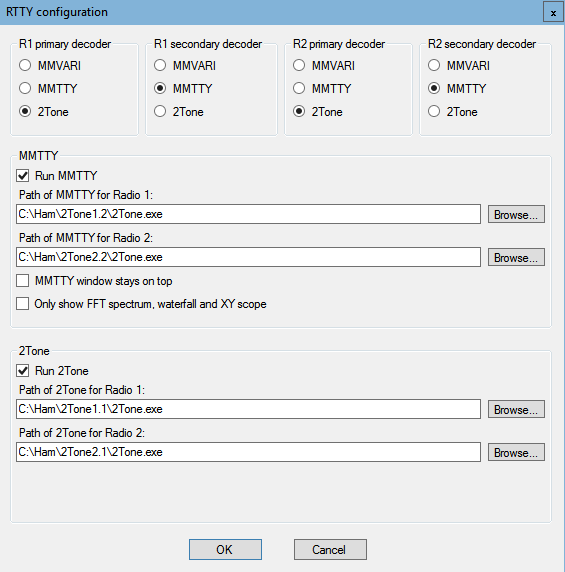

Before using the decoder windows, they must be configured using the RTTY Configuration panel: Options|RTTY Configuration



After configuration, each decoder window menu selection will show which decoder has been configured, for each selection (Primary/Secondary)
and radio (Radio 1/Radio 2). Note that the Primary decoder is the decoder used for the transmit interface, usually MMTTY.

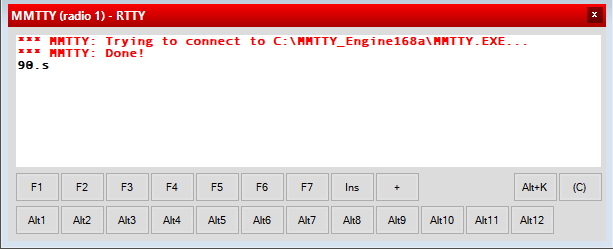

Selecting the appropriate menu pick will open the decoder window. The Primary decoder window will display a set of clickable buttons
at the bottom that duplicates all message function keys. The Altx buttons provide access to the messages defined in the
Alt-C (Other Messages) form. In addition, there is an Alt-K button (open keyboard mode window) and a (C) button (clear decoder window).

Callsign and exchange can be grabbed from the decoder window by clicking. Holding down [Alt] while clicking will grab a
call to the partner stack.

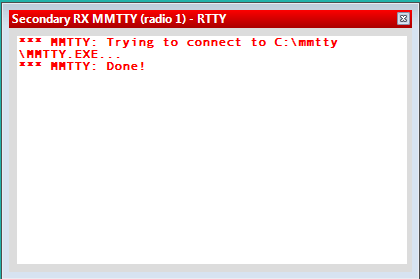

 RTTY R1R.png


When the decoder windows are opened the first time, it will be necessary to configure each one for input and output parameters such
as sound card, FSK port, etc. These settings will be saved by the decoder program and only need to be configured the first time.

Right click on the main decoder screen opens the options dialog



Clear window will clear the receive screen characters.

When Parse is checked, it will parse full line and sends to other windows for processing.
For example, in QTC receive window, it will parse full qtc line and populate all fields (utc, call, serial)

Note: MMTTY will only save the FSK port settings if you close the MMTTY windows before closing DXLog.
If you let DXLog close the MMTTY windows the FSK port will reset to NONE and will need to be selected at the next use.

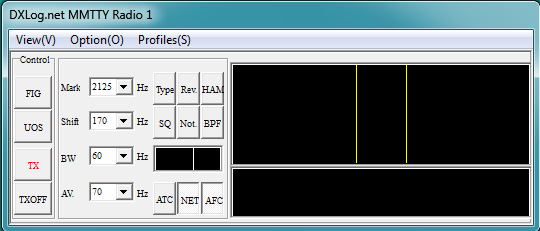

Example of MMTTY engine window.


N1MM+ Logger

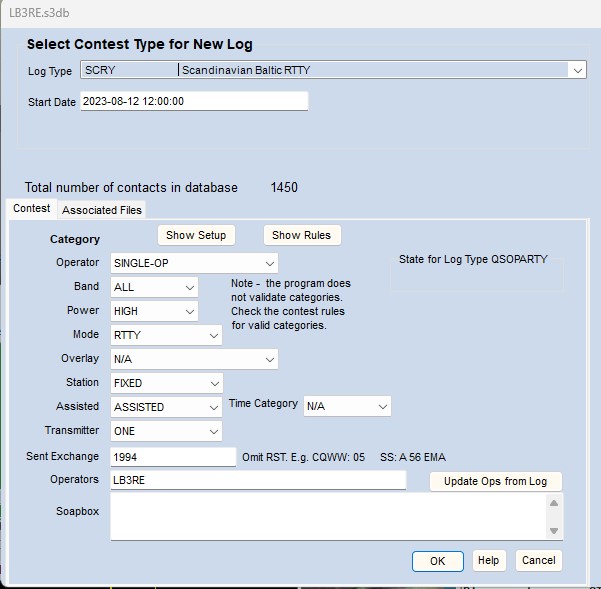

Setup SCRY with N1MM logger + in 2023

You can still choose to use OLD SCC module for this contest, but you will miss out mults for prefixes.

Here is listed for old Contest SCC.

N1MM + SETUP EXCHANGE WITH OLD SCC

N1MM + SETUP EXCHANGE WITH G4OGB UDC FILE

DOWNLOAD HERE <<RY_OPS UDC >>

SETUP N1MM with DIGI MODE ( from www.rttycontesting.com

Download and Install N1MM Logger+, set up N1MM Logger+ Configuration, and set up the Digital Interface (DI) window for MMTTY. Optionally, 2Tone and/or Gritty can be set up in Receive-Only windows. You may, if you wish, use 2Tone in the main Digital Interface, but for the sake of simplicity, we’ll concentrate on using MMTTY in the main RTTY window.

  1. Download and Install N1MM Logger+
  2. Set up N1MM Logger+ Configuration
  3. Set up Digital Interface Window for MMTTY
  4. Set up 2Tone in a Receive-Only Window
  5. Set up Gritty in a Receive-Only Window
  6. Set up RTTY messages page 1 > F1 through F12




Writelog V12

www.writelog.com

www.writelog.com

1. DC3HB Module for SCC RTTY must be downloaded https://rttyops.com/software/Writelog/dc3hb_writelog_1210.exe

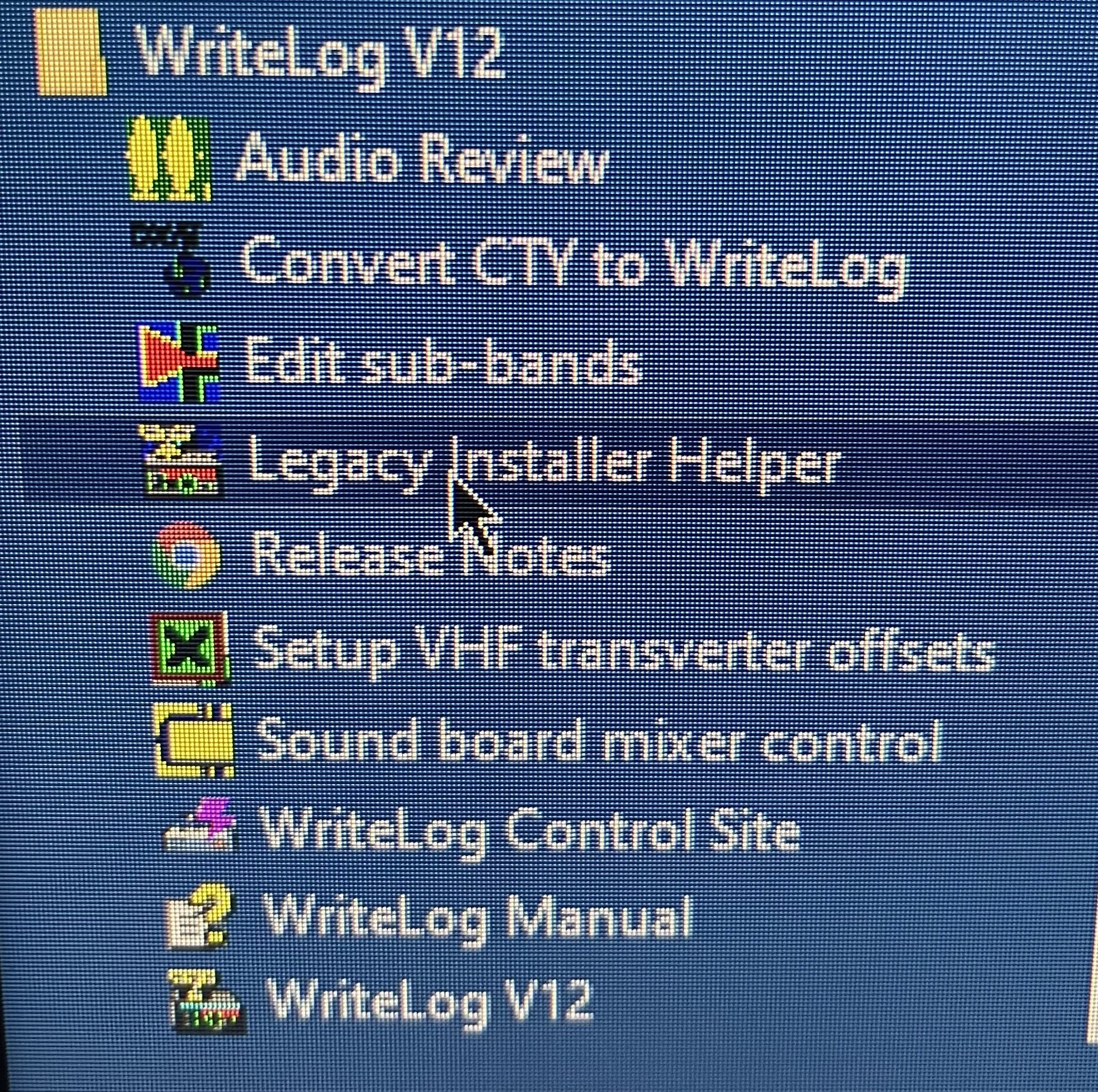

2. Find Writelog - Windows startmenu - > Legacy Installer

3. The module can be installed with  help of Writelog 12 Legacy Installer , only way to get it work in Writelog 12. Some Windows version can do DIRECT INSTALLED

3. Find your WLCM_SM6SRW050110.exe file-

4. START install with the Legacy Installer.

5. Wait till finished

6. Start up Writelog from Windows start menu.

7. Start new LOG

8. Choose SCC RTTY Championship

9. Then select  menu - CONTEST - OPTION - PARAMETER SETUP -> SETUP your license year



SETUP WRITELOG in RTTY ?

1. Download MMTTY Download here

2. Download MMTTY Engine V1.68a here

3. Download Active X Control here

4. Download TNC emulation here

Using homemade FSK interface?

5. Download EXTFSK engine EXTFSK106 here



Writelog Tutorials page 1 by AA5AU https://www.rttycontesting.com/tutorials/writelog/

Writelog Tutorials page 2 by AA5AU https://www.rttycontesting.com/tutorials/writelog2/

Contest related software




Contest Software Version Other Software
DXLog.net 2.5.48 Soundblaster Software
N1MM Logger+ 1.09.9522 LogConv by KA5WSS
Writelog by W5XD 12.66 BV7 by DF3CB
SCC RTTY Writelog Module by DC3HB 12.10 (04.03.2016) DXSoft Software (UA9OSV & RZ4AG)
Win-test 4.33 (01.10.2020) DX4WIN Logger
SD by EI5DI 21.36a (07.11.2020)
TR4W - TR for Windows by N4AF 4.94.1 (01.11.2020)
TR4W+MMTTY SCC RTTY Module by UR7QM 2016 (01.08.2016)
QARTest 10.10.1 (11.11.2020)
AAtest (FREE) EUHFC& SCC RTTY support 2.1.25 (10.10.2020)
EUHF Module for WL by RU3VD & S57AW 1.2 (19.07.2013)
EUHFC Call History 2020 for N1MM last (31.07.2020)
EUHFC Call History 2020 for Win-Test last (31.07.2020)
EUHFC Call History 2020 for Writelog last (31.07.2020)
EUHFC Call History 2020 for DXLog last (31.07.2020)
EUHFC Call History 2020 for TR4W last (31.07.2020)
CQM for WL by RU3VD & S57AW 1.2 (15.09.2009)
RTTY by WF1B (FREE) 5.02
MixW 3.2.105 (27.07.2017)
SH5 Log Analysis by UA4WLI 2.47 (26.09.2020)
Logger32 by K4CY (FREE) 3.50.0 (01.06.2019)
Ham System by OH2GI 7.1k (15.10.2012)
LM Logging SW by DL8WAA 4.10 (01.03.2013)
